Soft-Biscuit-Cookies-Forming-Machine
*The structure of this machine is simple, and the separating knife device has an adjustment device that can be adjusted to the best position.
*The roller printing roller is specially designed to overcome the phenomenon of uneven wear of the separation knife. The flower roller is taken out in a nearly vertical position and is easy to replace. This machine is divided into plate type hot air rotary oven baking and tunnel oven direct baking.
Product description
Walnut Cake Biscuit Forming Machine
*This machine is for crispness biscuit and walnut biscuit roll printing and pressing to form biscuit shape.
*Feed the mixed raw material into the feeding hopper, the machine will produce different shapes and grams of biscuits.
*There is the adjustment device about the separating blade, which can adjust the blades to the best place.
Product parameter
Model | TPP-200 | TPP-400 | TPP-600 |
Suitable tray size | 200*400m | 400*600mm | 600*800mm |
Capacity | 50-100kg/hr | 120-240kg/hr | 260-450kg/hr |
power | 1.5kw | 2.2kw | 3kw |
voltage | 220V/380V, 50HZ | 220V/380V, 50HZ | 220/380V,50HZ |
dimension | 1140*710*1250mm | 1970*800*1250mm | 1970*1000*1250mm |
Weight | 180kg | 330kg | 360kg |

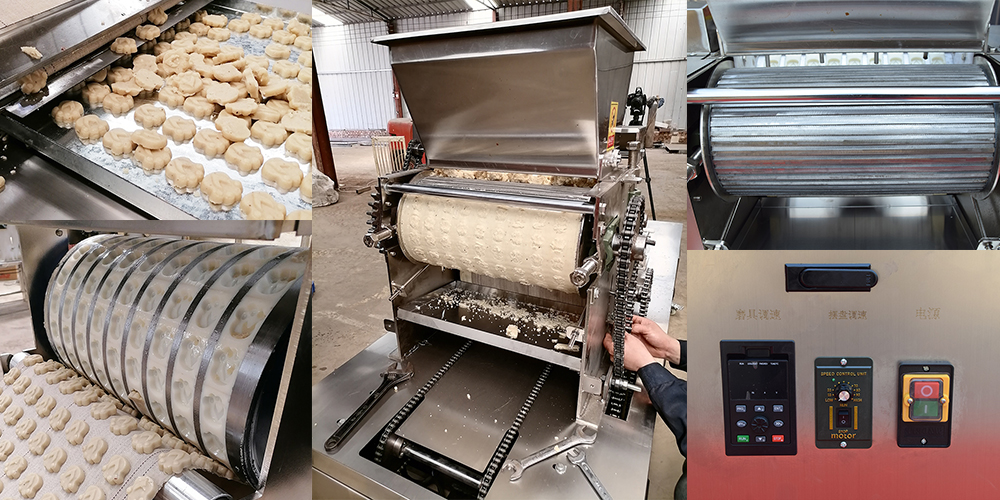

Product detail picture
