Single screw puffed pet food production line
Product parameter
Product name | specification |
Mixer | Model: TPP-JB25 Host power: 4kw Capacity: 3-5 minutes/time One stirring: 25kg Output: 200kg/hour Weight: 100kg Material: Stainless steel Size: (L*W*H) 1050x530x1050mm Weight: 100kg |
Screw feeder | Model: TPP-SL50 Host power: 1.5kw Capacity: 300kg/hour Weight: 100kg Material: Stainless Steel Principle: Spiral stirring blade conveying Size: 850X750x2450mm |

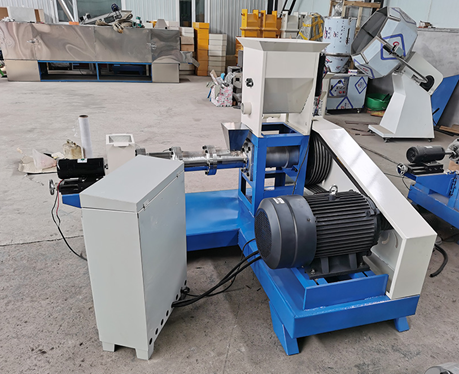

Single screw extruder | Model: TPP-DL60 Host power: 15kw Cutter power: 0.4kw adjustable speed Feeding power: 0.4kw adjustable speed Screw diameter: 60mm Capacity: 120-150/hour Body material: cast iron Expansion tube: rebar quenched Size: 1600X1300X1200mm Weight: 450kg |
Twin screw extruder | Model: TPP-SL 65 Capacity: 120-150kg Power 35kw Dimensions: 2000X1000X1800mm Material exterior stainless steel Screw diameter: 65mm Screw material: 38CrMoAl Screw with automatic cleaning function , no need to disassemble the screw, the motor is controlled by the frequency conversion independent control cabinet With feeding system, heating system, driving system, control system.
|
Wind conveyor | Model: TPP-SS20 Main engine power: 2.2kw Capacity: 200kg/hour Material: Stainless steel Weight: 70kg Size: 1500X500x2300mm |
Drying machinery | Model: TPP-HG100 Heating power: 30kw Transmission power: 0.55kw Mesh belt material: stainless steel Transmission method: chain transmission Temperature adjustable range: 0-200℃ Capacity: 180-200kg/hour Beautiful appearance, sturdy and durable, saves floor space and energy consumption, there is a certain insulation layer between the work room and the cover to remove excess moisture and prolong the shelf life. |
Wind conveyor | Model: TPP-SS20 Main engine power: 2.2kw Capacity: 200kg/hour Material: Stainless steel Weight: 70kg Size: 1500X500x2300mm |
Star anise seasoning machine | Model: TPP-BJ50 Power: 1.1kw Output: 150-200kg/h |
Single drum seasoning machine | Model: TPP-DGT20 Power: 3.5KW Size: 3100*900*1800 Material: Stainless steel |
Double drum seasoning machine | Model: TPP-SGT20 Main engine power: 0.55kw*2 Fuel injection power: 2.2kw Heating power: 1kw Stirring power 0.55kw Material: Stainless steel |

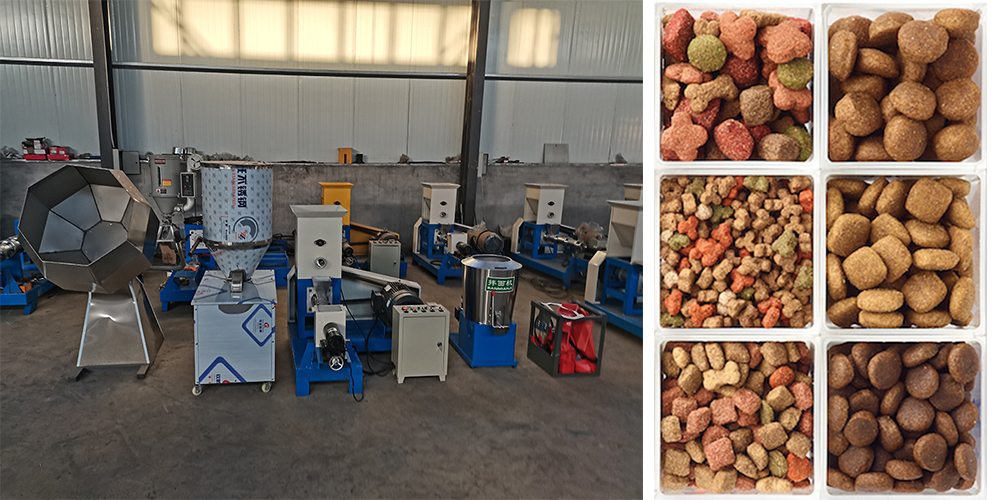

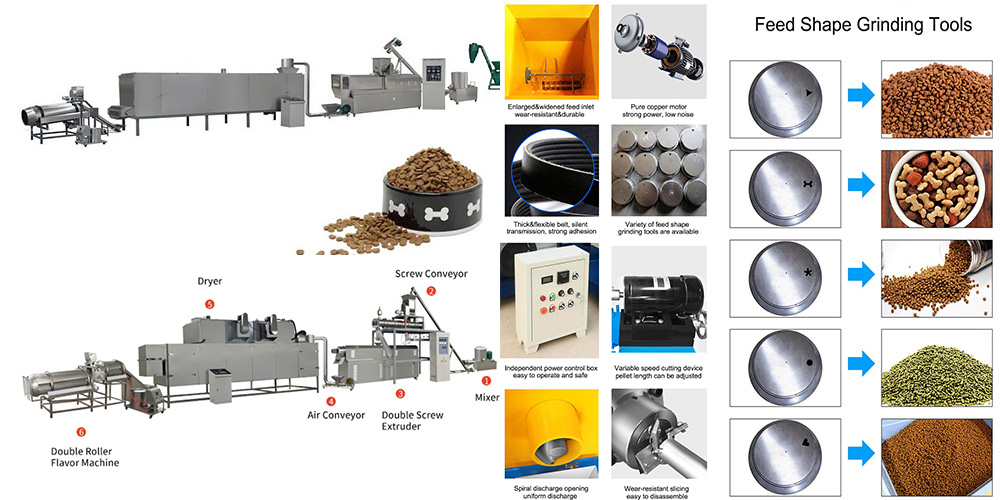

Product picture
