Multifunctional cake filling machine
2. This model has the adjusting handle, the filling quantity and filling speed is adjustable.
3. This machine can realize filling automatic continuously and filling controlled by feet two filling methods. And these two methods can be changed anytime.
4. The filling heads quantity can be ordered according to the customers’ demands.
5. This machine is made of full stainless steel. Food touching part is made of stainless 304 and PTEE.
6. This machine is suitable for small food industries, cake shops, bread shops and individual workshop, etc.
Multifunctional cake filling machine
Product description
1. TPP-SD1000 is with characteristics of simple structure, easy to operate, easy to adjust and easy to wash.
2. This model has the adjusting handle, the filling quantity and filling speed is adjustable.
3. This machine can realize filling automatic continuously and filling controlled by feet two filling methods. And these two methods can be changed anytime.
4. The filling heads quantity can be ordered according to the customers’ demands.
5. This machine is made of full stainless steel. Food touching part is made of stainless 304 and PTEE.
6. This machine is suitable for small food industries, cake shops, bread shops and individual workshop, etc.
Product parameter
Model | TPP-SD1000 |
Voltage | 220V |
Power | 0.03kw |
Max. depositing frequency | 20times /min |
Depositing amount | 10-1000ml（adjustable） |
Weight | 36kg |
Volume | 860mm*360mm*800mm |
Hopper capacity | 20L |
Air pressure | 0.5-0.7MPa |
Air consumption | 0.15 m³/min |
Air compressor power | 2kw |

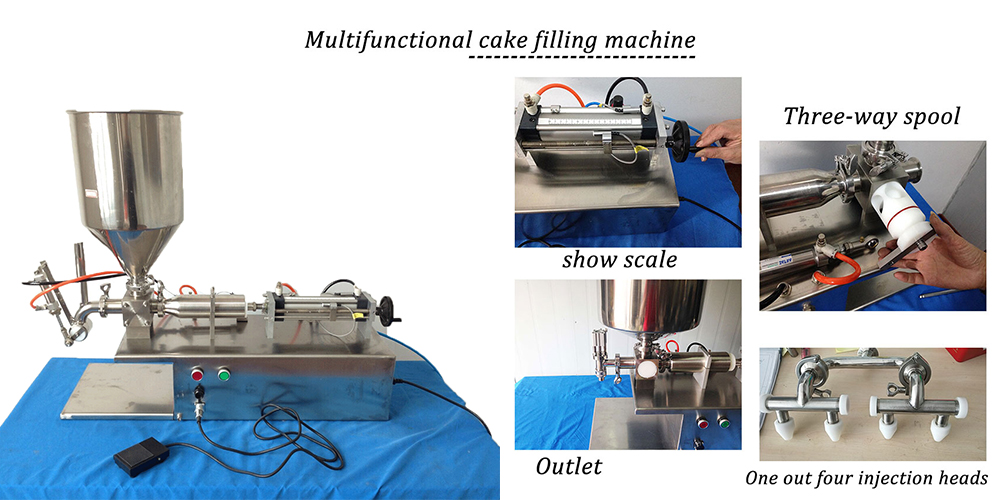

Product picture
