Multifunctional Burger Patty Production Line
The machine is made of stainless steel 304, safer, healthy and durable.
This hamburger forming machine can produce meat pie, chicken nuggets, fish flavor hamburgers, potato pie, pumpkin pie and kebab, etc product.
The machine can produce different shapes of hamburger, such as round shape, square shape, heart shape, start shape and other shapes.
The raw material can be meat and vegetables.
Product parameter

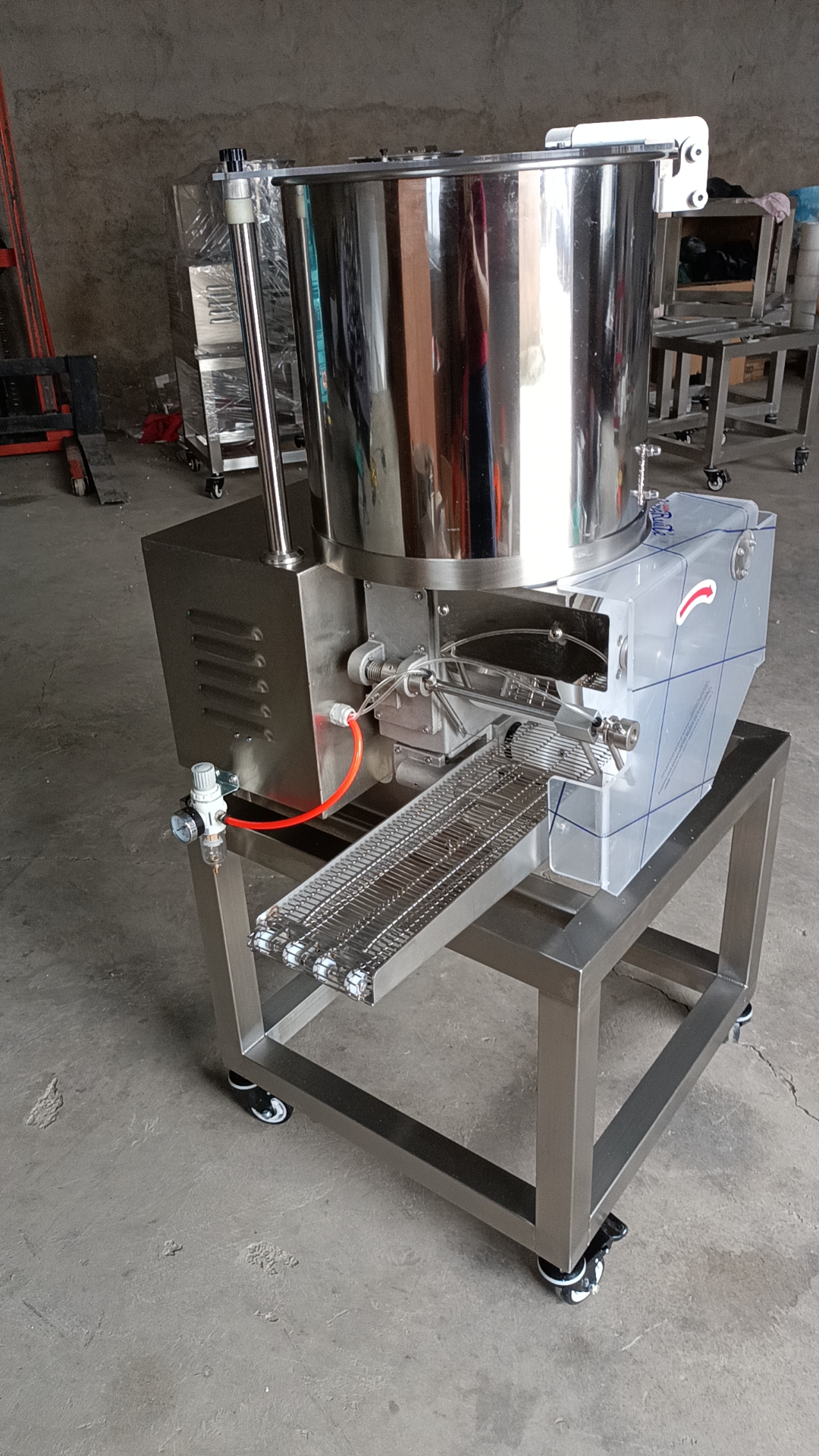

Forming Machine | Model: TPP-HB2 Hopper container: 32L Capacity: 2100pieces/h Pie thickness: 7-21mm(adjustable) Pie diameter: 28-120mm Power:0.75kw Air pressure: 6 Bar(alternative) Voltage: 220V/380V Dimension: 860*620*1350mm Weight: 100kg Material: SS304 |  |

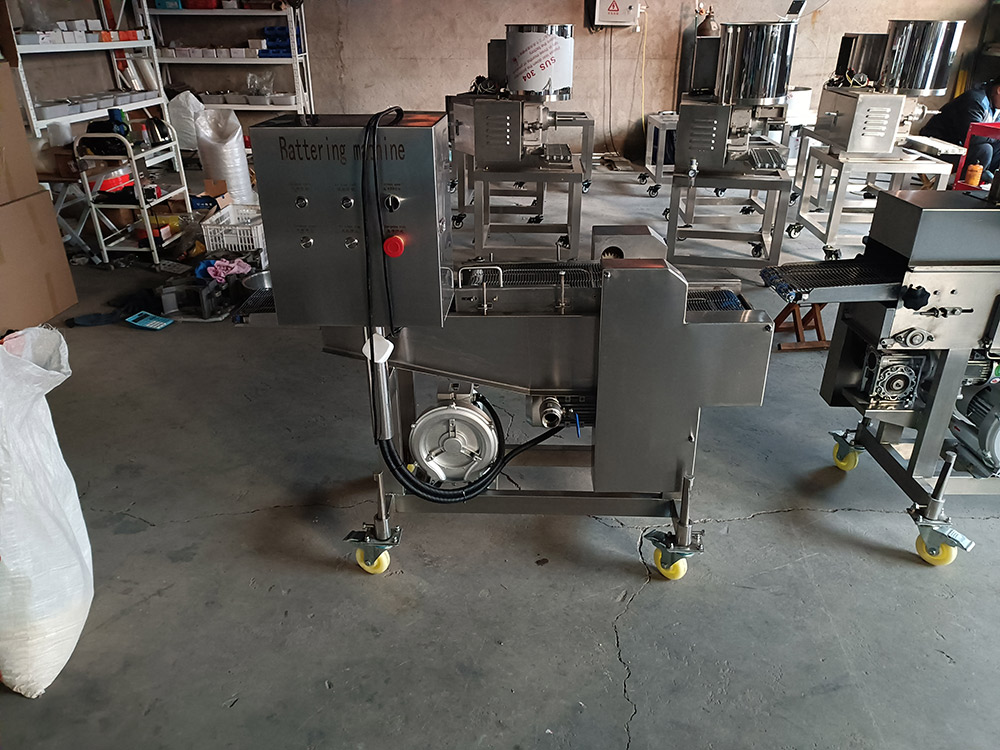

Starching machine Battering machine | Conveyor speed: 3-20meter/minute(adjustable) Belt width:200mm Power:1.65kw Voltage: 380V Dimension: 1400*740*1400mm Weight: 100kg Material: SS304 |  |

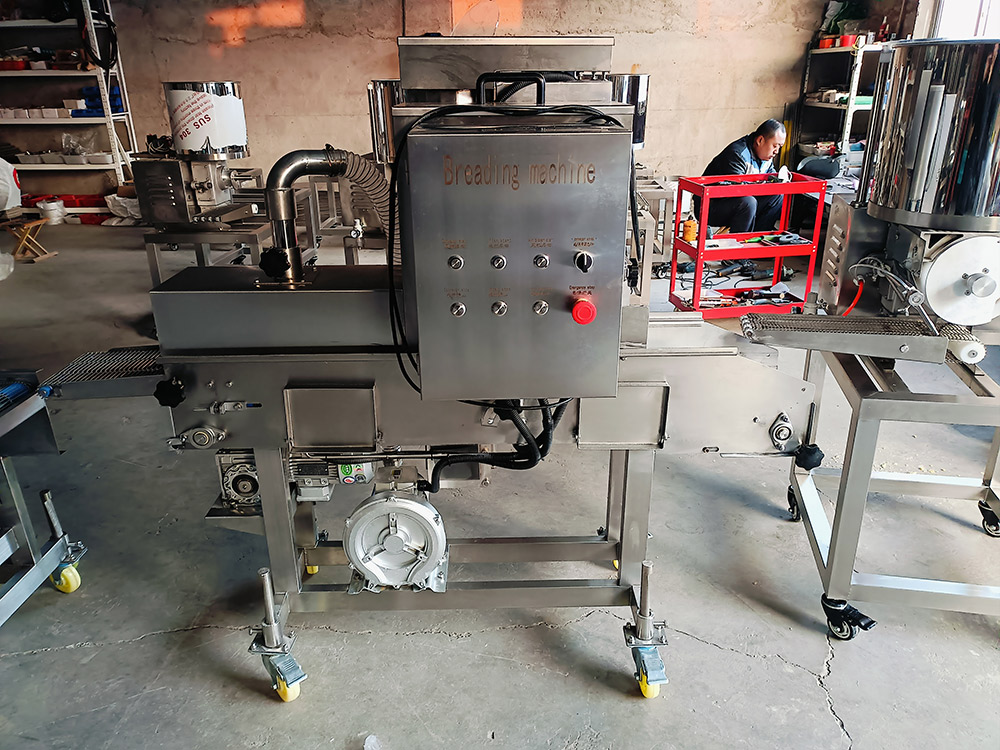

Breading machine | Conveyor speed: 3-20meter/minute(adjustable) Belt width:200mm Power:1.65kw Voltage: 380V/220V Dimension: 1680*770*1400mm Weight: 190kg Material: SS304 |  |
Frying machine | Capacity: 150-200kg/h Belt width: 300mm (Fluoride-coated mesh belt) Power:0.86kw Heating power: 48KW Temperature range: room temperature-300℃ Voltage: 380V Dimension: 2500*1400*1400mm Weight: 500kg Material: SS304 | |
Air cooling machine | Power: 2.8KW Voltage: 380V Fan quantity： 4Pcs Belt width：300mm Conveyor speed：3-20m/minute(adjustable) Dimension：5000*500*1200(mm Weight: 560kg |
Product picture
