Chocolate depositing coating machine
Model | TPP-C8 | TPP-C15 | TPP-C30 |
Capacity | 8 kg | 15 kg | 30kg |
Max. coating output | 2meter/minute | 2meter/minute | 2meter/minute |
Power | 2 KW | 2 KW | 4KW |
voltage | 220V/110V | 220V /110V | 220V/380V |
Front belt size | 800*240mm | 800*240mm | 1200*240mm |
Back cooling belt size | 930*240mm | 930*240mm | 2000*240mm |
Size | 1940*550*1370mm | 2200*640*1380mm | 3300*830*1480mm |
weight | 100kg | 110 | 240kg |
Product description
This equipment is special designed base on Italy and UK chocolate processing and handling technology in lab scale application.
The machine is made of SUS304.
It is used for making good quality pure or compound chocolate enrobing.
It can be fixed on the SG30 chocolate machine or remove for washing very easily.

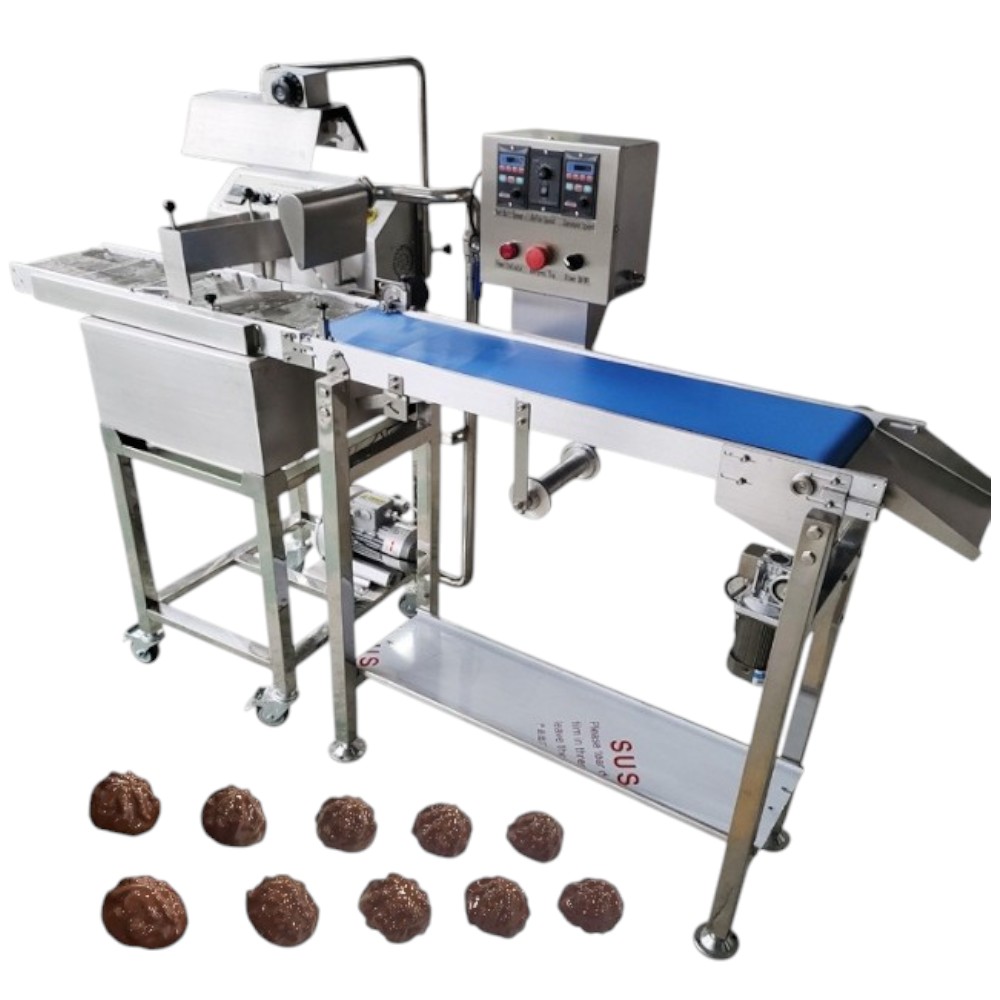

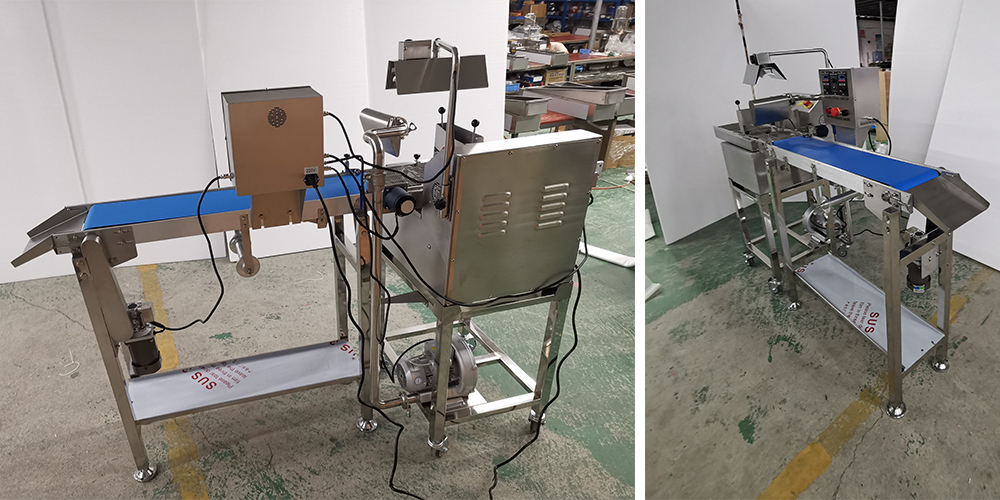

Product picture
Product advantage
About cleaning: the net chain conveyor belt can be taken down and washed with water, and the blue conveyor belt can be scraped clean and then cleaned with a hot rag.
For 8kg and 15kg coating machines, the length of net chain conveying and blue conveying are 0.8 m each, and the width of blue conveying is 20cm.
30kg coating machine, net chain conveying part: 120cm, 18cm wide, blue conveying part: 200cm long, 20cm wide.
