Bread Cake and Egg Roll Stuffing Machine
Model | TPP-SF4000 |
Max. filling frequency | 15times/minute |
Max. Capacity | 3000pcs/h |
Filling head needle | 4pieces (can be customized) |
Filling scope | customized |
Filling hopper volume | 30L |
Power | 2.5kw, 220V |
Dimension | 1850*900*1250mm |
Weight | 260kg |
Product description
* The equipment can perform complex actions such as filling with strips and filling with dots within the scope; Can produce various kinds of stuffed bread, stuffed cake, stuffed egg roll and other snack foods.
* This equipment does not need to cut bread or cake, and does not destroy the original appearance of food; The stainless steel filling needle tube is inserted into bread or cake, and fillings with different lengths and weights can be injected through computer program calculation and control. Filling is even and the filling will not leak out after being squeezed.
* This equipment can fill all kinds of liquid and semi-liquid fillings, including cream, jam with various flavors, bean paste, chocolate paste, etc.

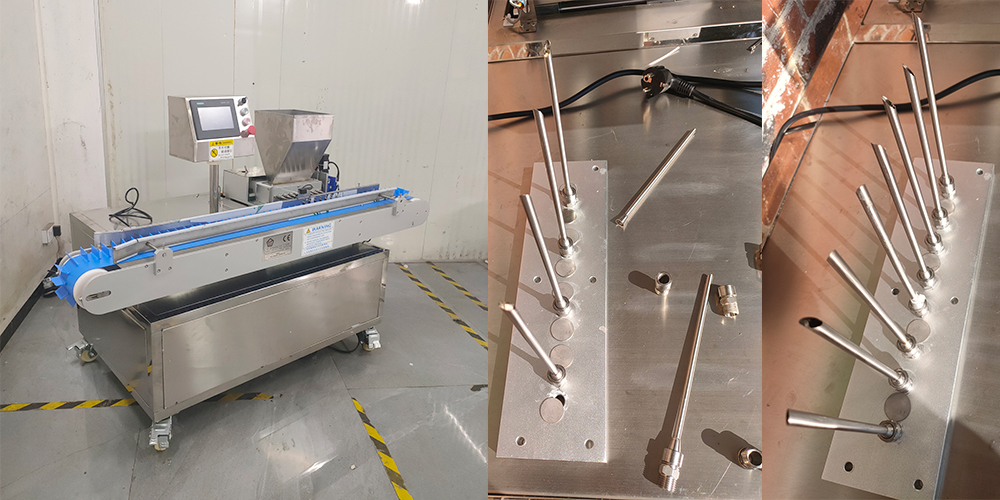

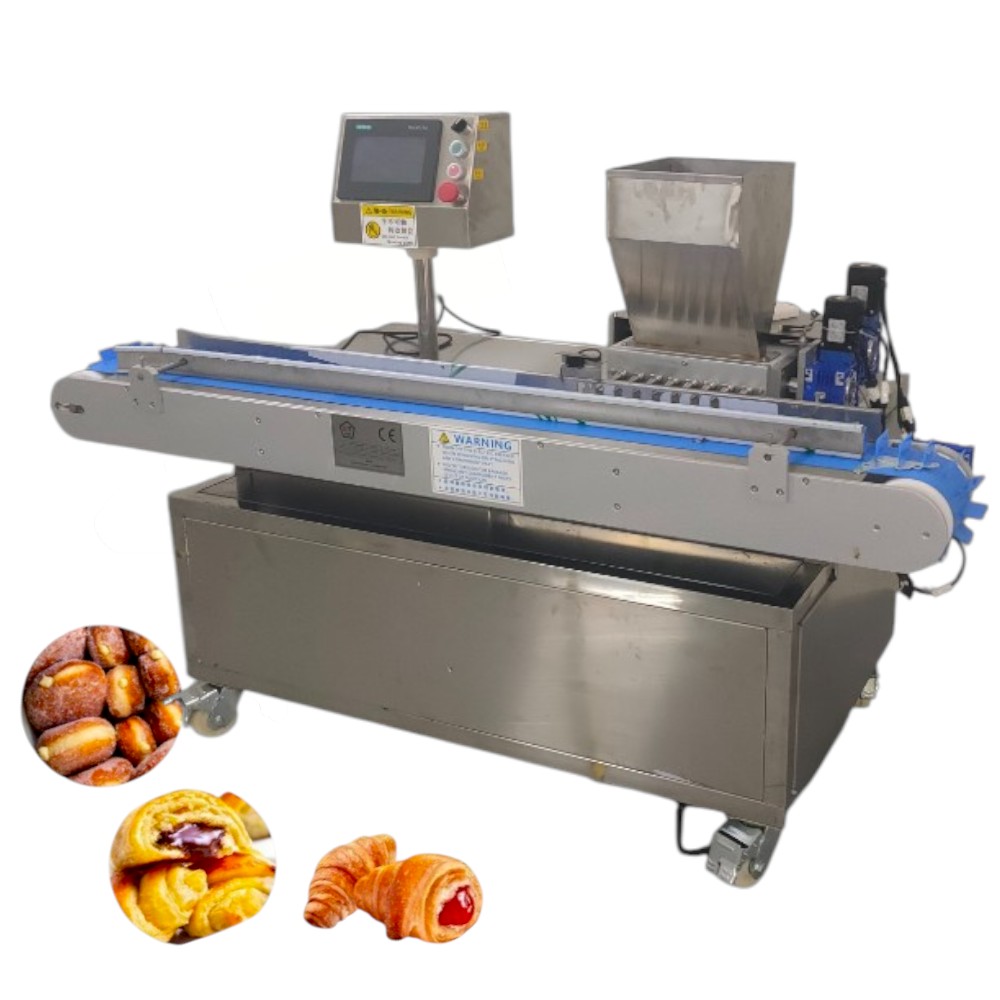

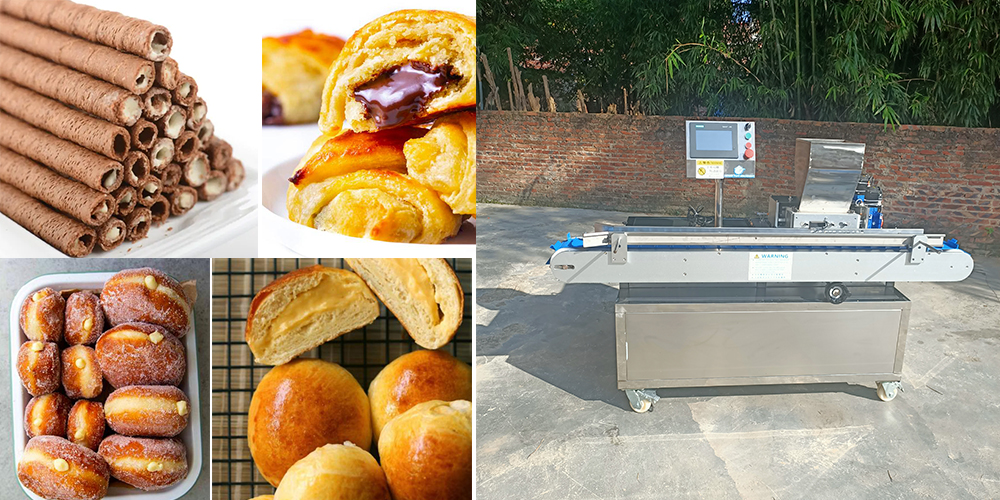

Product picture
Product advantage
Configuration:
Servo motor of the whole machine, without air compressor.
Material: stainless steel 304
PLC and touch screen
Product FAQ
Q:Is the machine suitable for chocolate sauce?
A: The hopper can be equipped with a water circulation heating function to prevent the chocolate sauce from solidifying.
Q:Can the number of filling needles be customized?
A:Generally, it is customized according to the size of the bread.
Q:Can the PLC language be set?
A: We can provide corresponding language options according to your requirements.
Q:Is one machine suitable for multiple types of bread?
A: This needs to be determined based on the size of the bread.
Q: Can the hopper be equipped with a heating function?
A: A water circulation heating device can be added to the outside of the hopper, and the heating temperature is adjustable. Suitable for ingredients requiring heating, such as chocolate and butter.
Q: Can loaves of different lengths be made using the same machine?
A: If the width of the loaves is displayed for different lengths, the feeding length can be adjusted by adjusting the baffles and PLC on the machine.
Q: Can the PLC operating language be customized?
A: Yes, it can be customized. The touchscreen operating language can be customized according to your language preferences.
Q:How many can be injected at a time?
A:We need to confirm based on the dimensions of your raw materials.
Q:What is the lead time for the machine?
A:30days.
Q:What is the lead time for a second order of the same machine?
A:20 days.
Q:What is the voltage requirement?
A:220V, single-phase
