Automatic Cookies Making Machine
the prototyping system is made of feeding rollers and used to force the dough into molding rollers to press the cake,
the rubber rollers and used to out the cakes on the canvas belt conveyer. there will be pans receiving the cakes after conveyors .
Automatic Cookies Making Machine
Introduce for commercial cookies making machine
Automatic cookies making machine composed of extruding moulding system and pallet conveying system ,driven by timing motor which can adjust the production speed ,
the prototyping system is made of feeding rollers and used to force the dough into molding rollers to press the cake,
the rubber rollers and used to out the cakes on the canvas belt conveyer. there will be pans receiving the cakes after conveyors .
Parameter for big model cookies maker machine
Model | TPP-400 | TPP-600 | TPP-800 |
Capacity | 100-180 kg/h (7holes) | 200-260 kg/h(10holes) | 300-400 kg/h(13holes) |
function | extrusion, twist, drag strip and cut | extrusion, twist, drag strip and cut | extrusion, twist, drag strip and cut |
Voltage | 220v, 50Hz | 220v, 50Hz | 220v, 50Hz |
power | 0.75kw | 1.5kw | 2.2kw |
Size of baking tray | 600*400mm | 600*400mm/600*600mm | 600*800mm/400*800mm |
Dimension | 1460*960*1240 | 1460*1120*1240 | 2200*1320*1600mm |
weight | 600kg | 800kg | 1000kg |

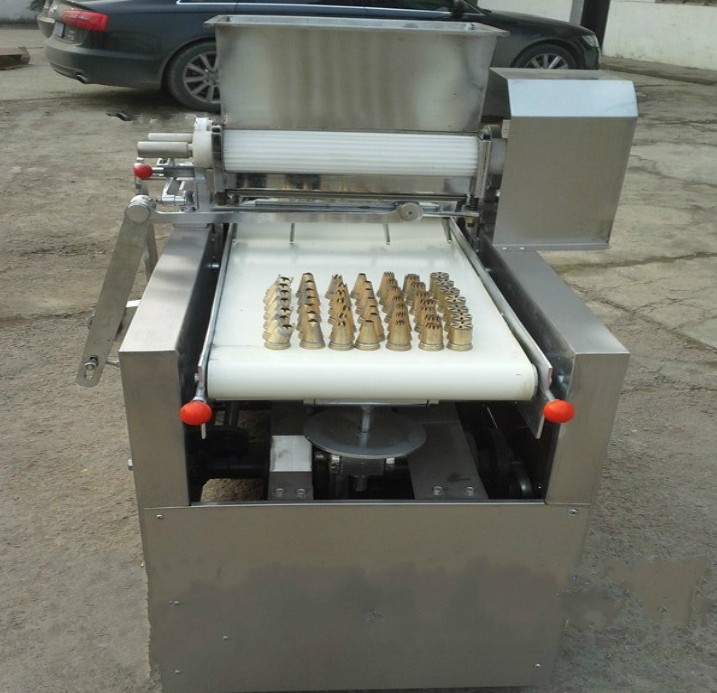

Picture for cookies making machine
