Chocolate biscuit sandwich making maker machine

Adjusted by advanced step less transducer, the speed is stable.
With photoelectric control, it can automatically detect the lack of biscuits. When the machine stops, the stuff-feeder will shut-down automatically to ensure no leakage of stuff and keep the machine clean.

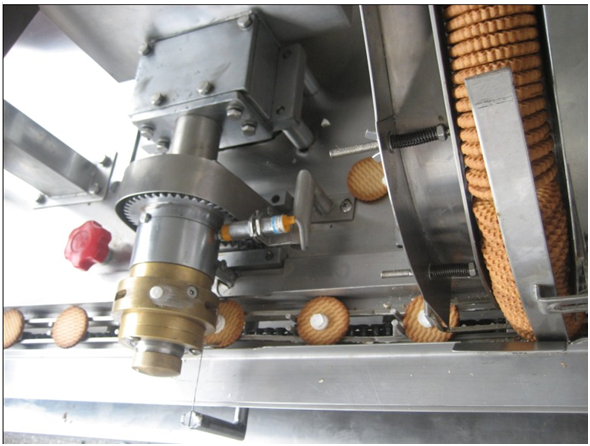

Arranged by the star-wheels, the biscuits are ranked orderly.

Chocolate biscuit sandwich making maker machine


Introduction:

Adjusted by advanced step less transducer, the speed is stable.
With photoelectric control, it can automatically detect the lack of biscuits. When the machine stops, the stuff-feeder will shut-down automatically to ensure no leakage of stuff and keep the machine clean.
Arranged by the star-wheels, the biscuits are ranked orderly.
The temperature can be controlled automatically to ensure constant temperature for the stuffing, when various specifications of layer-biscuit such as rectangle, square, roundness and ellipse are changed, every parts can be adjusted rapidly and easily.
With novel aspect, the whole machine is mainly made of stainless steel and meets the foodstuff sanitation requirement.

Biscuit sandwich.jpgBiscuit sandwich (3).jpgbiscuit.png



technical parameters

Model

TPP-D

 TPP-S

Function

One-row, one-layer

two/one-color butter/jam stuffing

Double rows, one-layer

two/one-color butter/jam stuffing

Producing capacity

100-300piece/min

200-600pieces/minute

Working power

220V 50Hz(60HZ)

220V 50Hz(60HZ)

Power of the machine

3KW

3KW

Specification of stuffing

(Roundness):(ø)30-60(mm)(H)3-8(mm)
 (Square):(L)30-75(mm)(W)30-60(mm)H3-8(mm)

(Roundness):(ø)30-60(mm)(H)3-8(mm)
 (Square):(L)30-75(mm)(W)30-60(mm)H3-8(mm)

Overall size

3300*1200*1500

3800*1200*1500

Weight of the machine

500kg

650kg
