Soy Sauce Filling Machine
Product Description
Introduction:
*Wide range of application:

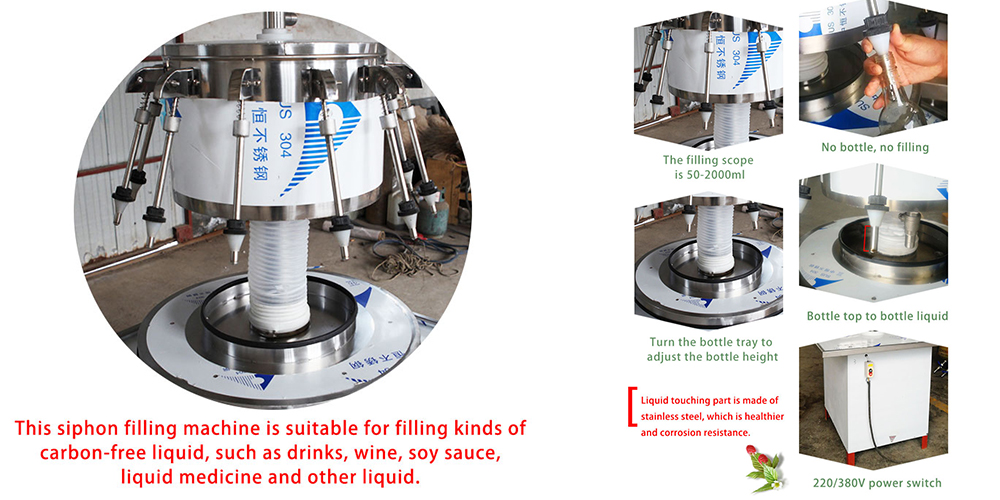

This siphon filling machine is suitable for filling kinds of carbon-free liquid, such as drinks, wine, soy sauce and other liquid.
*Big filling capacity :
The filling scope is 50-2000ml.
*No liquid loss:
No bottle, no filling.When filling, the liquid will be close to the bottle inner wall spraying, which will not overflow.
*Easy to operate:
This machine is very easy to operate. Only one worker will be enough for operating this machine.The height can be adjustable when processing different height of bottles.
*Filling principle:
Siphon principle, mechanical rotary type auto flow filling at atmospheric pressure.
Product Parameter
Model | TPP-HX12 |
Filling speed | 1000-2500bottles/hr |
Filling heads | 12-24heads |
Bottle mouth diameter | 14-30mm |
Filling scope | 100-2000ml |
Voltage | 220/380V |
power | 0.37/0.55kw |
Dimension | 900*900*1600mm |
weight | 150kg |

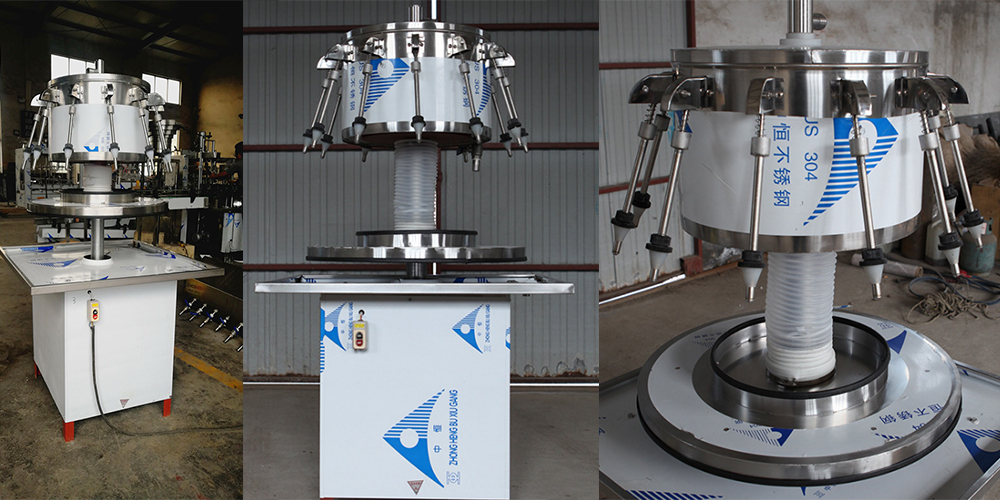

Product Picture
Product Advantage
1. Wide Range of Applications
Suitable for filling various non-carbonated beverages, including wines, soft drinks, soy sauces, liquid medicines, and other liquids. No adjustment is needed when changing bottle heights.
2. Large Capacity
Filling volume can range from 100 to 2000 ml.
3. No Liquid Loss
No bottle loading or filling. During filling, the liquid is sprayed along the inner wall of the bottle, preventing foaming and spillage.
4. Easy to Operate
Simple maintenance and easy operation; most workers can operate the machine after a short training.
5. Low Power Consumption
Low motor power, low electricity consumption, and low price.
