Product Feature and Application

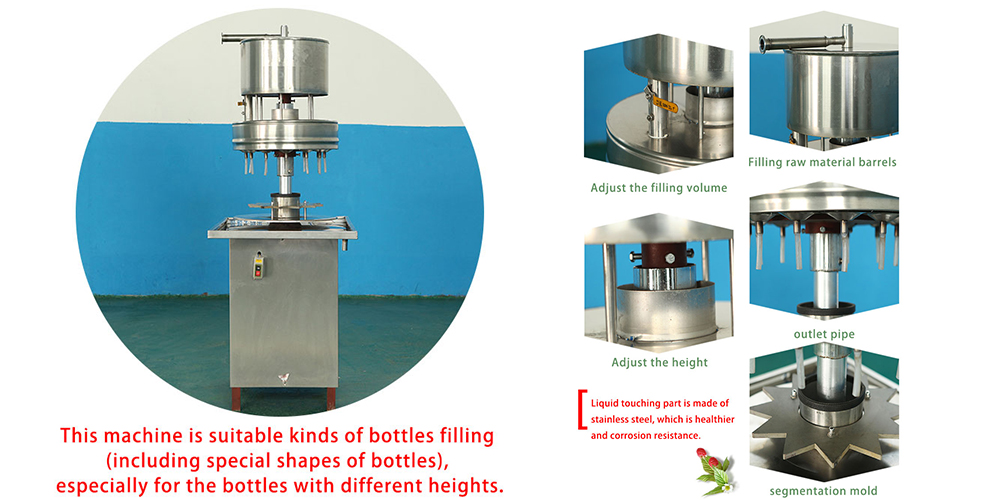

1. This machine is suitable for quantitative filling of liquids in various bottle types (including irregularly shaped bottles), especially bottles of the same size but different heights.

2. It can be used for filling various non-carbonated wines, beverages, soy sauces, and other liquids.

3. This machine is small in size, lightweight, compact in structure, long in service life, simple to maintain, and easy to operate. General workers can operate it after a short training. It does not require anchor bolts, is easy to install, and has a low-power motor, resulting in low energy consumption and a low price.

4. The quantitative control principle adopts constant speed, equal division, and atmospheric pressure filling. Adjustment is simple, allowing for precise adjustment of quantitative accuracy. It is easy to master, reliable in operation, and accurate in measurement.

5. All parts of the machine that come into contact with the liquid are made of high-quality stainless steel, ensuring that the liquid is not contaminated and is corrosion-resistant. The overall machine has an attractive appearance and meets food hygiene standards.

6. It has a wide range of bottle size adjustments, is easy to adjust, and accommodates bottle heights from 60-320 mm.

7. The number of filling heads can be customized from 10 to 12 heads according to user requirements. The efficiency will change accordingly.

Product Parameter

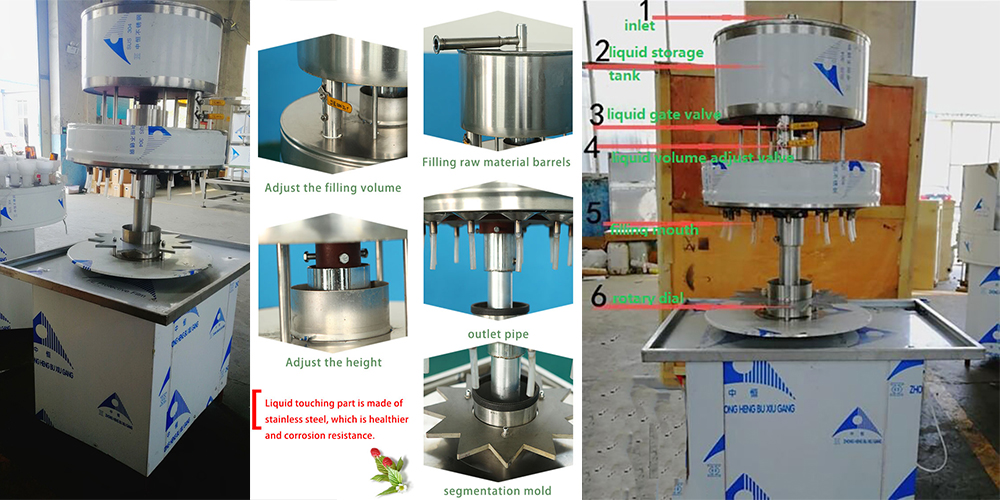

Product Picture

Transmission Principle

The transmission mechanism of this machine consists of an electric motor that drives a reducer, pinion, and gear via pulleys and V-belts, thereby rotating the bottle dispensing mechanism.

Maintenance and Care

• At the factory, the rotating parts and reducer housing are filled with calcium-based grease.

• After use, disassemble and lubricate once a year.

• Lubricate the gears and lifting parts every 3-6 months to prevent wear and corrosion.
