Siphon Type Liquid Filling Machine

This siphon filling machine is suitable for filling kinds of carbon-free liquid, such as drinks, wine, soy sauce and other liquid.

Product description


Introduction:

*Wide range of application:

  This siphon filling machine is suitable for filling kinds of carbon-free liquid, such as drinks, wine, soy sauce and other liquid.

*Big filling capacity :

  The filling scope is 50-2000ml.

*No liquid loss:

  No bottle, no filling.When filling, the liquid will be close to the bottle inner wall spraying, which will not overflow.

*Easy to operate:

  This machine is very easy to operate. Only one worker will be enough for operating this machine.The height can be adjustable when processing different height of bottles.

*Filling principle:

  Siphon principle, mechanical rotary type auto flow filling at atmospheric pressure.

Product parameter


Model

TPP-HX12

Filling   speed

1000-2500bottles/hr

Filling   heads

12-24heads

Bottle   mouth diameter

14-30mm

Filling   scope

100-2000ml

Voltage

220/380V

power

0.37/0.55kw

Dimension

900*900*1600mm

weight

150kg

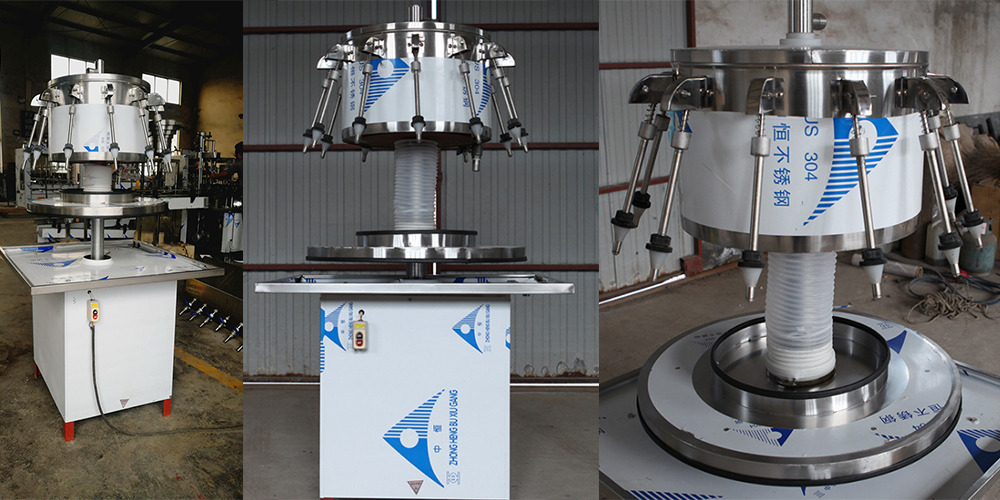

Product picture
