Semi-automatic intelligent self-flowing filling machine
Product description
The top section is the constant-liquid tank.
The liquid pumped by the pump is placed in this tank, which maintains a constant liquid level.
If there is a shortage after each filling, the pump will automatically replenish it.
This ensures consistent pressure and guarantees filling accuracy.
Included accessories: 1 solenoid valve, 4 sealing rings.
Product parameter
Model | capacity | Filling head | Filling scope | Power | dimension | weight |
TPP-ZL2A | 200-500pcs/hr | 2 pieces | 100-1000ml 500-5000ml 5000-10000ml | 0.37kw | 700*700*1900mm | 150kg |
TPP-ZL4A | 400-900pcs/hr | 4pieces | 0.55kw | 1200*750*1900mm | 230kg | |
TPP-ZL8A | 700-1200pcs/hr | 8pieces | 0.75KW | 1200*850*1900mm | 260KG |

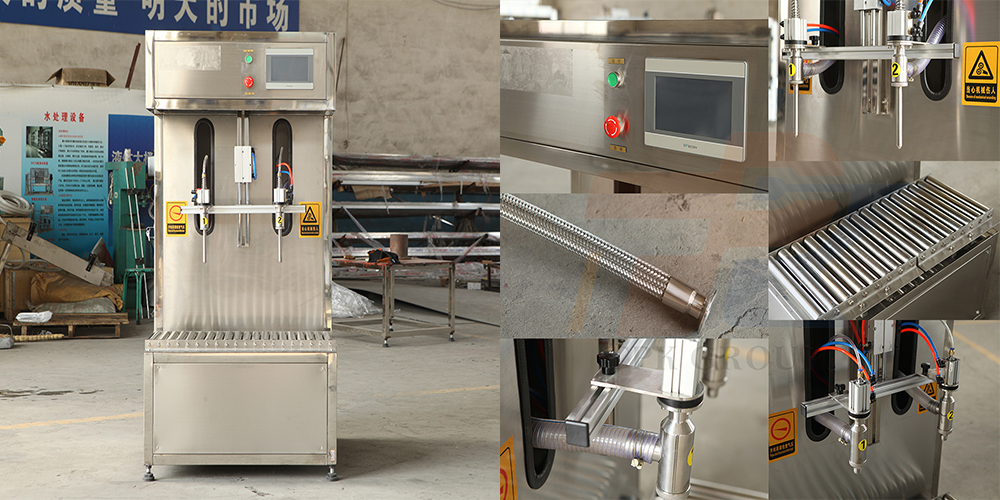

Product picture
The differences between weighing filling machines, metering filling machines, and intelligent self-flowing filling machines
1. The materials being filled differ. Weighing-type filling is suitable for almost all liquids, including chemical liquids, lubricants, edible oils, waterproof coatings, and large packages of liquids, but it is relatively expensive. Flow meter-type filling is only suitable for oils, especially edible oils. Gravity-flow filling is suitable for filling non-viscous fluids such as aqueous solutions, but it is also suitable for thin oils like olive oil.
2. Gravity-flow filling is mainly suitable for filling liquids under 5L.
3. Price varies, with weighing-type being the most expensive, followed by flow meter-type, and then gravity-flow type.
Common features: All are configured with PLC program control and touch screen operation.
