Semi-automatic 2-head, 4-head, and 8-head intelligent filling machines
Product description
Introduction:
1.The machine adopts integrated electrical design, high quality electrical components, convenient system operation and adjustment, 7-inch touch screen operation, friendly man-machine interface, using novel automatic control technology, in order to achieve more high-precision filling.
2. Filling volume adjustment with actual measurement correction method, digital display control.
3.Easy operation, easy cleaning and maintenance, low maintenance cost.
4.Single cylinder stable diving, effective bottle positioning.
5.It is widely used in low viscosity liquid filling such as fruit juice antifreeze, glass water seasoning, wine, liquor, olive oil, etc.
Product parameter
Model | capacity | Filling head | Filling scope | Power | dimension | weight |
TPP-ZL2A | 200-500pcs/hr | 2 pieces | 100-1000ml 500-5000ml 5000-10000ml | 0.37kw | 700*700*1900mm | 150kg |
TPP-ZL4A | 400-900pcs/hr | 4pieces | 0.55kw | 1200*750*1900mm | 230kg | |
TPP-ZL8A | 700-1200pcs/hr | 8pieces | 0.75KW | 1200*850*1900mm | 260KG |

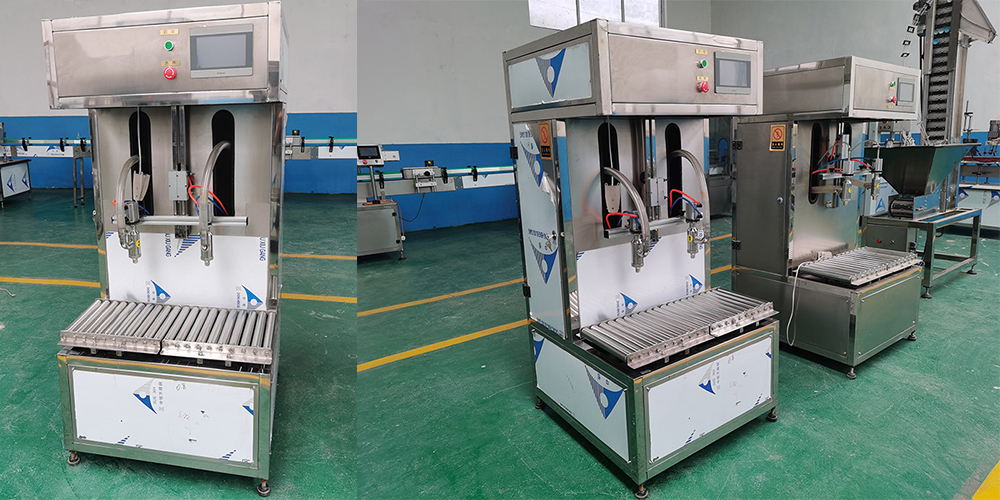

Product picture
The differences between weighing filling machines, metering filling machines, and intelligent self-flowing filling machines
1. The materials being filled differ. Weighing-type filling is suitable for almost all liquids, including chemical liquids, lubricants, edible oils, waterproof coatings, and large packages of liquids, but it is relatively expensive. Flow meter-type filling is only suitable for oils, especially edible oils. Gravity-flow filling is suitable for filling non-viscous fluids such as aqueous solutions, but it is also suitable for thin oils like olive oil.
2. Gravity-flow filling is mainly suitable for filling liquids under 5L.
3. Price varies, with weighing-type being the most expensive, followed by flow meter-type, and then gravity-flow type.
Common features: All are configured with PLC program control and touch screen operation.
