Pull cover brush barrel machine

The machine can pull out the cover and the removed cover is non wear, which can be reused.

Product Description


Introduction:

1. This machine is with functions of water bucket brushing, inner washing and external washing at the same time.

2. The user can choose to use different water supply modes, such as periodical feeding, no cyclical water and dual water supply mode, etc.

3. The machine can pull out the cover and the removed cover is non wear, which can be reused.


Product Parameter


Model

TPP-BS-1

Capacity

200-300pieces/hr

suitable barrel size

5gallon(ø270*490*56mm)

brush quantity

8 pieces

power

1.1kw

air pressure

0.5Mpa/cm2

air inflow

≥0.1m3/minute

weight

65KG

Dimension

800*750*1150mm

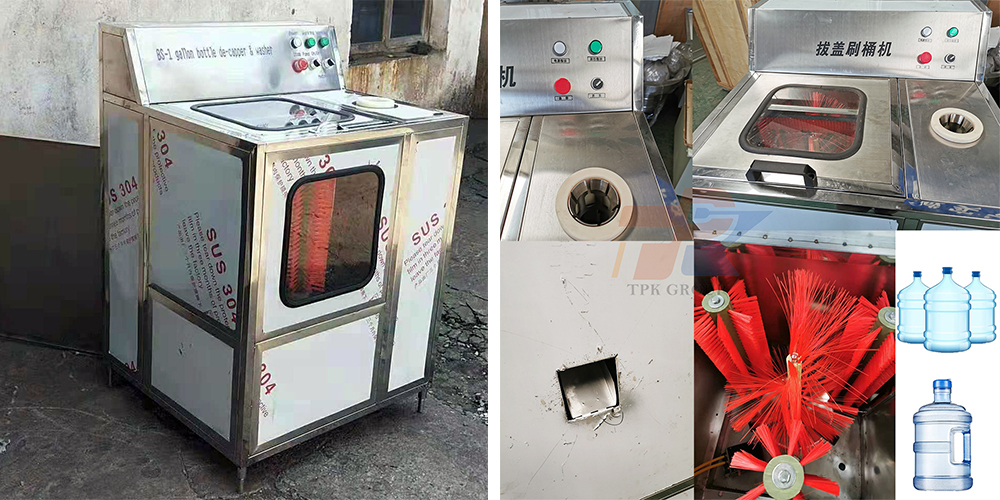

Product Picture




Product Advantage


1. Integrates brushing, internal washing, and external washing into one unit, completing all three working states within the same cycle, saving time, labor, and electricity.

2. Water supply methods: Users can choose from circulating water supply, non-circulating water supply, or a combined water supply mode according to their needs.

3. Excellent brushing effect: This machine is suitable for effective brushing of the inner and outer walls of the container.

4. Simple operation: The entire brushing process can be completed with just one door opening and closing operation.

5. Note the power supply method: N is the neutral wire. After connecting the power supply, fill the water tank with water and confirm the motor rotation direction.

6.Then turn on the power switch on the panel, and then open the flip cover to test run.

7. The cap remover is suitable for separating the caps and containers of 3-gallon and 5-gallon drinking water recycling containers. The separated caps are unworn and undeformed, and can be reused after disinfection, improving the utilization rate of the caps.

8. This machine uses air pressure as power, ensuring safety and reliability. The rated air supply pressure is 0.5 MPa/cm², the air intake volume is ≥0.1 m³/min, and the cap removal rate is 200–300 caps/hour. To remove the cap, connect the air supply, invert the recycling bin, insert the bin opening into the cap removal head, and then press the foot switch. The cap will then slide off from the groove.
