Pneumatic Single Head Paste Filling Machine
Product Description
Introduction:
*This series of filling machine is a product that is transformed and innovated with reference to foreign advanced filling machine technology.
*Its structure is simple and reasonable, the precision is high, the operation is simple, and the humanized design is more in line with the requirements of modern enterprises.
*It is widely used in food, pesticides and special industries.
*It is an ideal equipment for quantitative filling of high viscosity fluids and pastes.
Product Parameter
model | TPP-DG100 | TPP-DG200 | TPP-DG500 |
Filling scope | 10-100ml 15-150ml | 20-200ml 30-300ml | 50-500ml 60-600ml |
voltage | AC 220/110V 50/60HZ | AC 220/110V 50/60HZ | AC 220/110V 50/60HZ |
Filling accuracy | ±0.5%-- ±1% | ±0.5%-- ±1% | ±0.5%-- ±1% |
power | 20W | 20W | 20W |
Air pressure | 0.4-0.6 MPa | 0.4-0.6 MPa | 0.4-0.6 MPa |
dimension | 1020*340*340mm | 1020*340*340mm | 1020*340*340mm |
weight | 24kg | 24kg | 26kg |
Filling speed | 40-50bottle/minute | 40-50bottle/minute | 40-50bottle/minute |

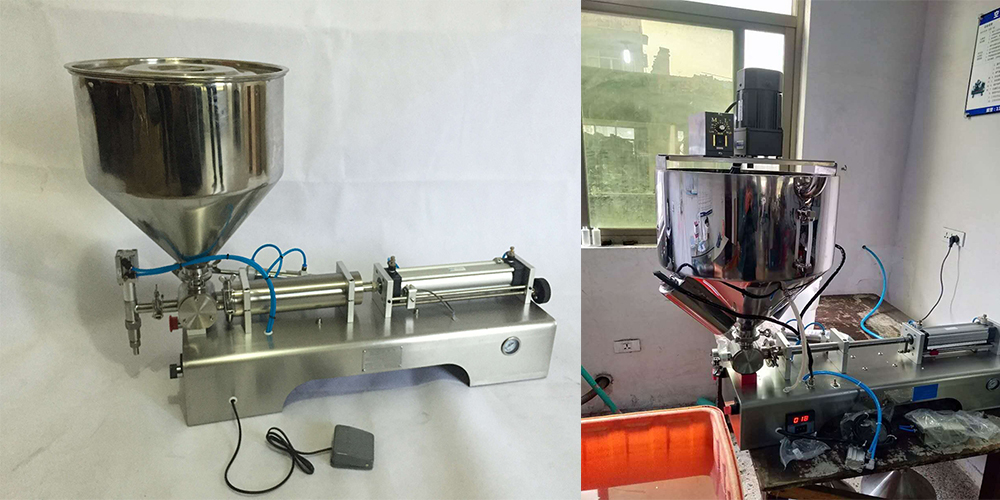

Product Picture
Product Advantage
*The series of filling machines are reasonable in structure, compact in size, reliable in performance, accurate in quantitative and easy to operate, and the power part adopts a pneumatic structure.
*The contact parts of the materials are made of 304L stainless steel and meet the requirements of GMP certification.
*The filling amount and filling speed can be arbitrarily adjusted within the range of the model according to the user's needs, and the filling accuracy is high.
*The filling head is made of anti-drip and lifting filling device.
