Product Description

• This machine adopts high precision micro magnetic pump, motor speed and pump working time to measure the filling quantity，Pump head is made of 316L，Acid and alkali resistance, corrosion resistance；It is suitable for a wide range of applications. Almost all liquid that can flow can be filling，Especially suitable for filling oil, washing liquid, acid and alkali liquid and high corrosive liquid。The machine utility model has the advantages of simple structure, convenient operation and long discharge nozzle，Hose can be filled by any movement，It can meet the filling capacity requirements of 5ml-4500ml and is not limited by the filling container. It is a reliable and durable filling equipment。

• The pump head and motor are imported with original packaging, the filling control board is controlled by high-precision single-chip microcomputer program, and other components are produced by well-known domestic manufacturers, with stable and reliable performance, high filling accuracy and long service life；The magnetic pump head is driven by magnetic force, and there is no shaft connection between the pump head and the motor, so it is not necessary to worry about the damage and leakage of the shaft seal or the burning of the motor due to the high load of the pump；Start and brake are controlled by filling program, filling time is accurate to 0.01 seconds, so as to ensure filling accuracy and adjust filling flow；The machine has complete functions. It can be filled by hand, foot or automatic intermittently.

• The intermittence time can be adjusted。

Product Parameter

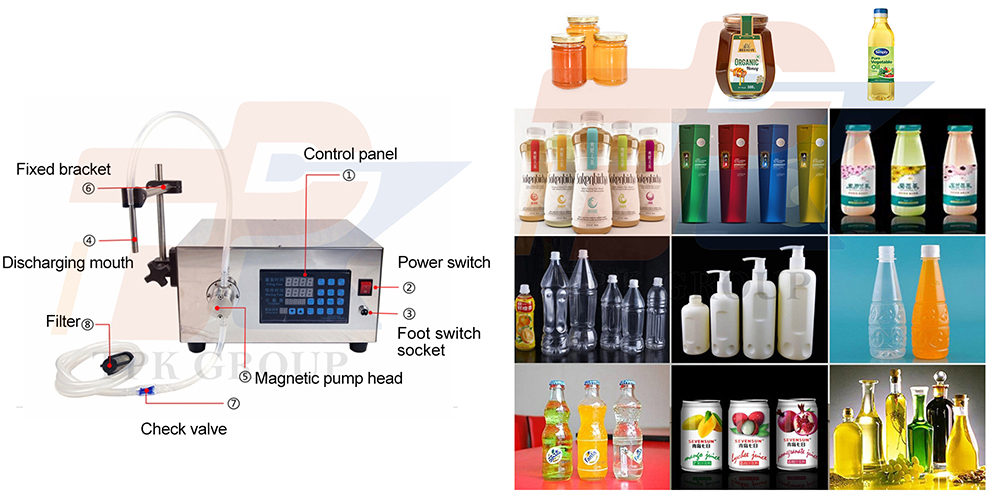

Product Picture

Work adjustment

1. Work adjustment：Take out the power cord from the accessory bag, foot switch, and connect it according to the device socket；Take out the fixing bracket, connect it according to the product structure drawing, and adjust the required height according to the size of the product 。

（1）, Filling volume regulation；According to the required filling amount, set the time from 0.01 second to 999 seconds，Press the filling time of the control panel [set]  ，Digital flicker，Use [right click]  Adjust the position of the number，USE [add]  Adjust the time required，Press again[set]   Completion time setting。Quickly adjust the filling volume：Press [filling set]，When the required filling amount is reached，Press again [filling set] .，Set to complete。

（2），Filling time adjustment：In automatic mode, set the waiting time from 0.01 second to 999 seconds according to the operating speed，Press the control panel wait time【Set】 ，Digital flicker，Use【right click】   Adjust the position of the number，Press【add】  Adjust the time required，Press again【set】  Completion time setting。

（3）, Automatic filling；Press  [ auto ] ，The equipment starts to enter the automatic filling state. After the completion of one filling, the waiting time enters the countdown and the filling is started again。

（4）Manual filling；Press [manual key]  ，The equipment starts to fill liquid and stops running after filling one bottle

（5）Counter setting：Press【Set】，Adjust the digital position by right shift，Press [add] to adjust the required filling times. When the filling times are reached, the equipment will stop automatically。

（6）Filling speed regulation；Used to control the speed of magnetic pump to control the flow of liquid during filling.

Note: the flow adjustment of the two-head machines is made by pressing the buttons on the display screen
