Product Description

Introduction:

*This automatic cup filling and sealing machine can realize auto cup dropping, filling, sealing and auto cup discharging function.

*The machine adopts stainless steel body, which meets the sanitary requirements and is convenient for cleaning.

Product Parameter

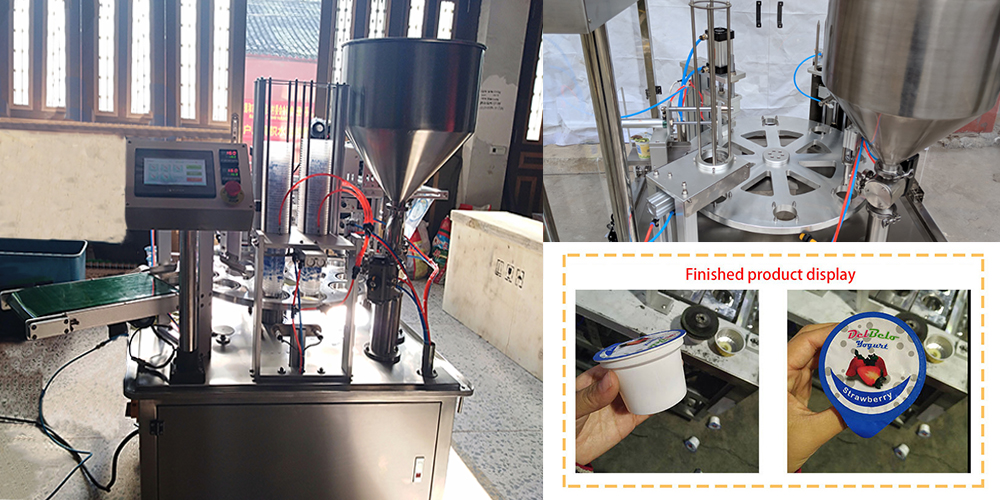

Product Picture

Product Work Flow

Automatic cup dropping → quantitative filling → photoelectric detection sealing and film cutting → conveying

Main Functional Structure

1. Transmission and template traction system: including drive motor, reducer, smooth transmission, a linear gap transmission system and a traction transmission chain, a positioning device and an aluminum mold board, etc. There is a stainless-steel plate under the aluminum plate to support the smooth operation of the cup.

2.  Automatic cup dropping system: mainly completed by pneumatic device, system by pneumatic components, cup holder, positioning cup dividing device and other components. Stable and efficient.

3. Automatic filling system: Adopting the piston type quantitative filling system and the filling amount can be adjusted.

4. Sealing system: including heating, constant temperature control parts, temperature sensor, sealing device, hot sealing plate and hot sealing head, pneumatic sealing motion executive parts. Sealing temperature: 0-300℃.

5.  Automatic cup system: The cup is sucked out and transmitted out automatically.
