commercial liquid paper cup plastic cups filling and sealing machine

1. Automatic Japanese Omron PLC control system. Automatic cup dropping—plunger filling(leak-proof)—ultraviolet sterilization—cursor positioning—double hot seal—automatic film cutting—automatic film collecting—finished product automatic dropping

2. Machine material: machine frame is made of carbon steel 45#, which is coated by stainless steel metal plate. Other parts of machine are all made of stainless steel 304.

commercial liquid paper cup plastic cups filling and sealing machine

Product Description

Introduction:

1. Automatic Japanese Omron PLC control system. Automatic cup dropping—plunger filling(leak-proof)—ultraviolet sterilization—cursor positioning—double hot seal—automatic film cutting—automatic film collecting—finished product automatic dropping

2. Machine material: machine frame is made of carbon steel 45#, which is coated by stainless steel metal plate. Other parts of machine are all made of stainless steel 304.

Application and feature:

TPP-4J automatic cup filling sealing machine is suitable for kinds of shapes of plastic cups filling and sealing. Packed product is very beautiful and top grade. This machine is fully automatic from cup sending, filling, sealing, film collecting and cup discharging.

This machine is multi-functional model.

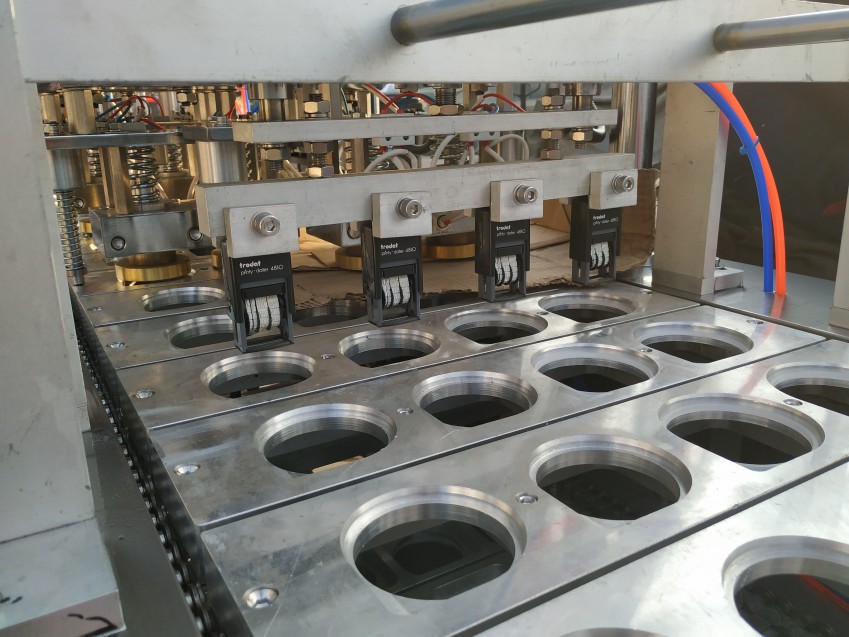

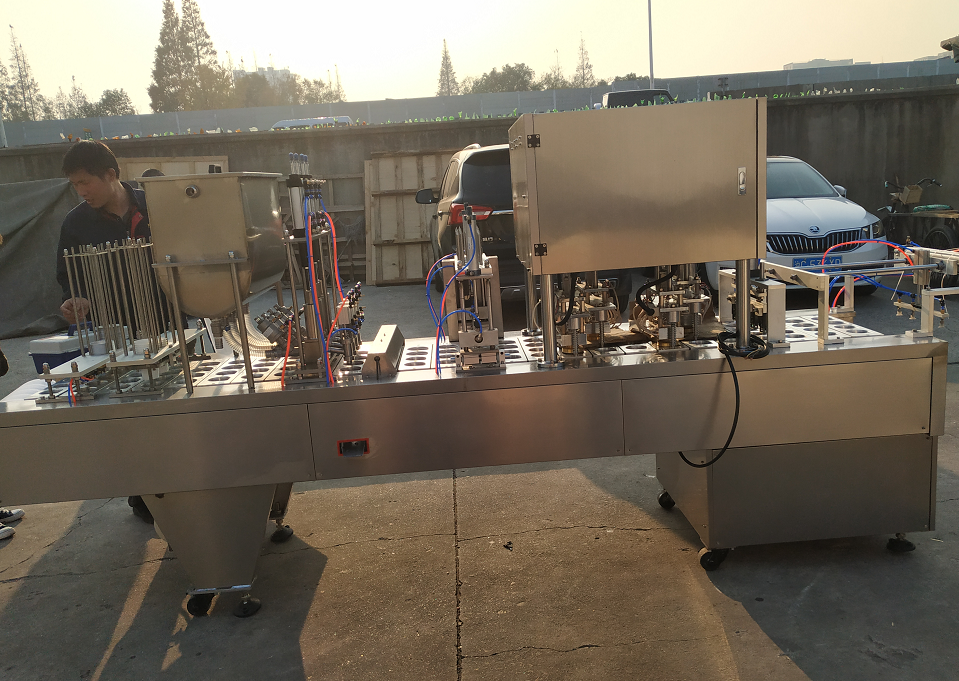

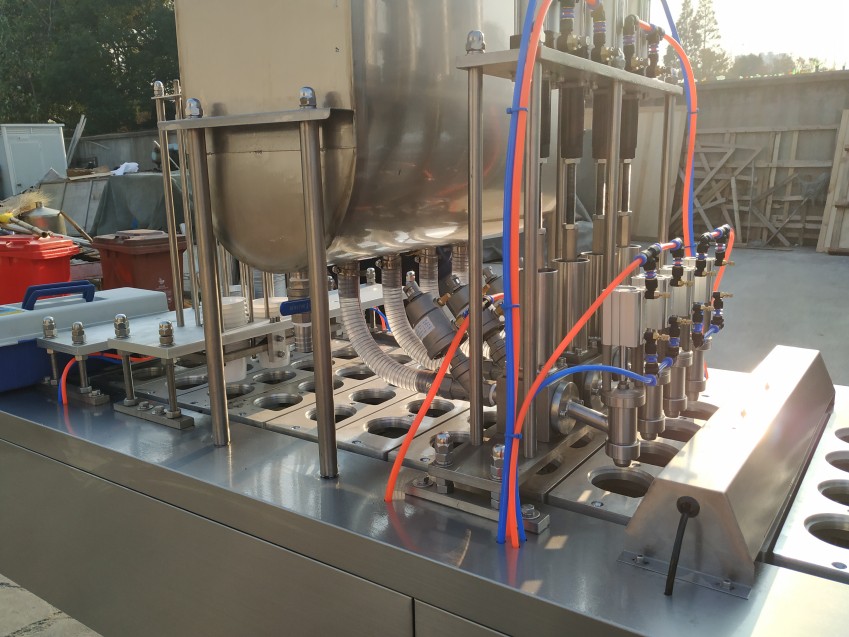

Product Photos


filling sealing machine 1.png


filling sealing machine 4.jpg


filling sealing machine 5.jpg

Technical Parameter


ModelTPP-4J
Filling head4 heads
Filling materialLiquid or semi-liquid
Capacity3500-3800cups/h
Filling quantity30-300 g adjustable
Power supply380V/50Hz
Power3.5 kw
Air consumption0.65m³/min
Temperature control0-400ºC

Dimension

3000*800*1900 mm
Weight1200kg
