Industrial Sugarcane Juice Machine
Product description
Operation introduction:
1. Before using this machine, please add lubrication oil in the oil cup and on the gear.
2. the engine can be electric motor or diesel engine.
3. start the machine running without sugarcane for 1 minutes to check the working condition of the machine, if it is running well, the worker can begin to extract sugarcane.
Application:
This machine is suitable for working in factory or beverage company.
Product parameter
Model | TPP-300A | TPP-500A | TPP-1000 | TPP-2000 | TPP-3000 |
Power | 3KW，8horsepower | 4KW，8horsepower | 5.5KW，12horsepower | 7.5KW，15horsepower | 11kw， 16horsepower |
voltage | 220/380V,50/60HZ | 220/380V,50/60HZ | 220/380V,50/60HZ | 380V,50/60HZ | 380V, 50/60HZ |
capacity | 300KG/H | 500KG/H | 1000KG/H | 2000KG/H | 3000KG/H |
weight | 200KG | 350KG | 500KG | 650KG | 760KG |
dimension | 880*860*550mm | 1050*1100*680mm | 1240*1200*780MM | 1560*1340*850MM | 1660*1840*950MM
|

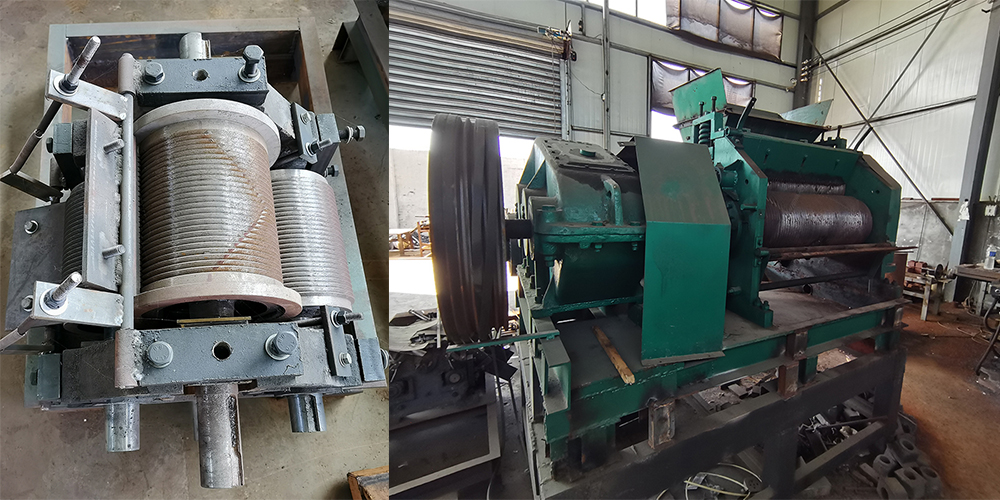

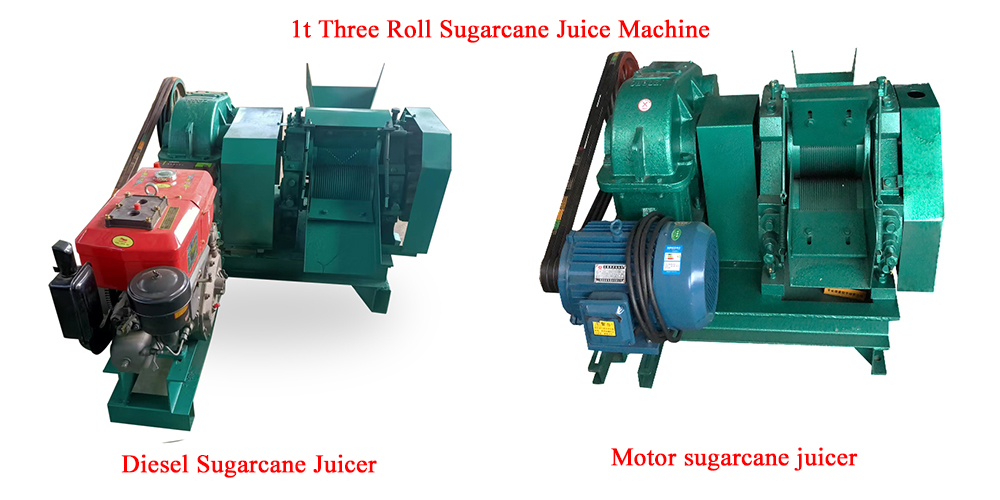

Product picture
