Hole Belt Type Garlic Size Grading Machine

This machine is mainly suitable for sorting garlics and onions.

Product description


Introduction:

1. This machine is mainly suitable for sorting garlics and onions.

2. This machine installs brush roller in each grade, which can effectively prevent garlic clogging the sorting holes.

3. The sorting speed and discharging speed are adjustable.

4. The front end of the discharging belt is designed with bagging device, and the garlic can be bagged directly after grading.

5. The machine is with mobile casters, which is easy to move.

6. Drive mode: shaft drive.


Product parameter


Model

TPP-KDDS4

PP-KDDS5

Capacity

3-5ton/hr

3-5ton/hr

Grade quantity

4grades(3pcs sorting belts)

5grades(4pcs sorting belts)

power

2.2kw

2.2kw

Voltage

380V/220V

380V/220V

Sorting belt width

1000mm

1000mm

dimension



3900*1500*950mm

4880*1500*950mm

weight

700kg

875kg

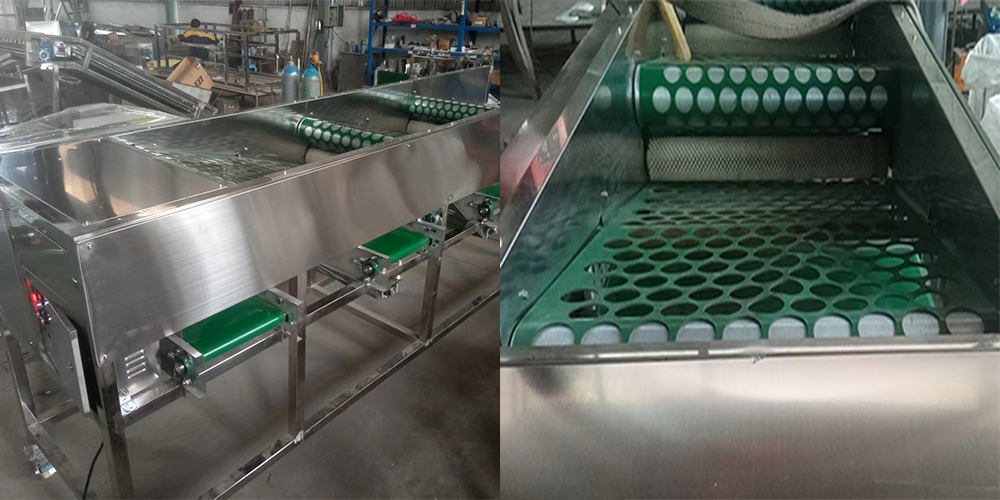

Product picture
