Industrial fruit pineapple peeler and corer machines
The finished pinepple is cylindrical pineapple.
Industrial fruit pineapple peeler and corer machines
Introduction for automatic pineapple peeling coring machine
This pineapple peeler and corer machne is suitable removing the peel and core of the pineapple.
The finished pinepple is cylindrical pineapple.
Working procedure:
The first step: The worker needs to cut off the both end of the pineapple before using this machine.The second step: the worker put the pineapple on the feeding rack.
The third step: the pineapple will be pushed to go through peeling blade and coring blade to become cylindrical pineapple.
Note: If you only need to remove the skin, you can remove the coring blade inside the feeding rack.
Parameter for pineapple peeling machine
Model | TPP-120 |
Capacity | 6-12 pcs/minute |
Blade | 1pc of 70mm Peeler blade (for diameter 80- 90mm) 1pc of 80mm Peeler blade (for diameter 90-100mm) 1pc of 90mm Peeler blade (for diameter 100-110mm) 1pc of core blade |
Power | 0.75kw,220V |
Suitable pineapple diameter | 100-110mm |
Finished pineapple diameter | 70mm, 80mm, 90mm |
Air compressor | The pressure: <0.8mpa, air release quantity: 250L/min |
Dimension | 1200*700*1300mm |
Weight | 100kg |

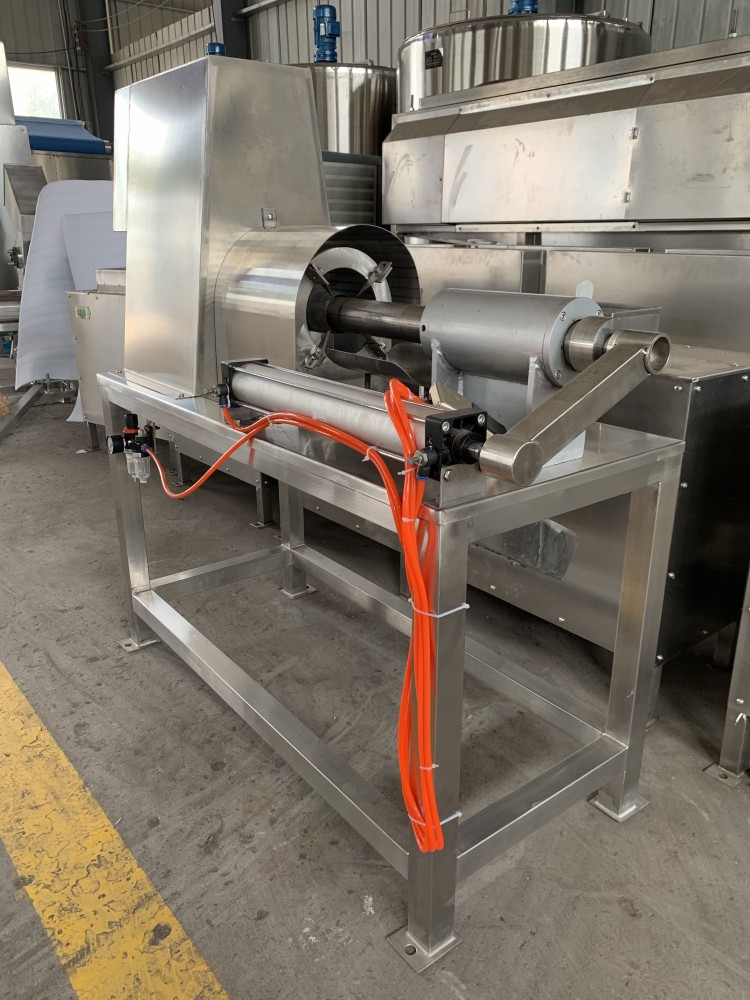

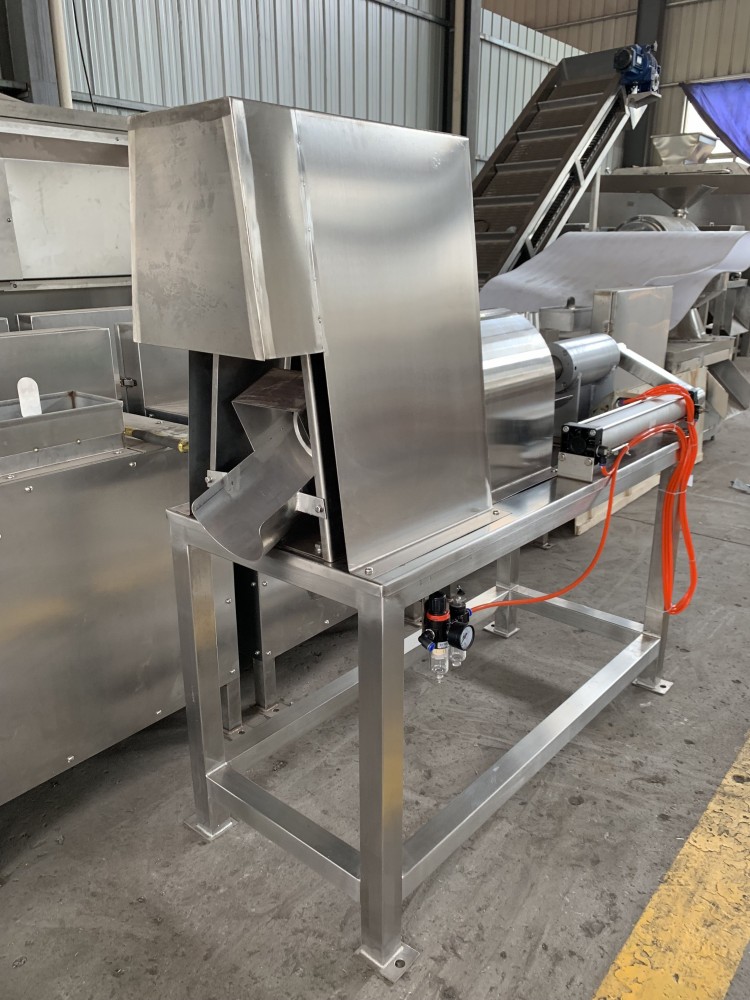

Pictures for stainless steel pinapple peeler machine
